GM1 Calibration Gas Mixer
Calibration Gas Mixer
GM1
Why settle for standard when you can have exceptional?

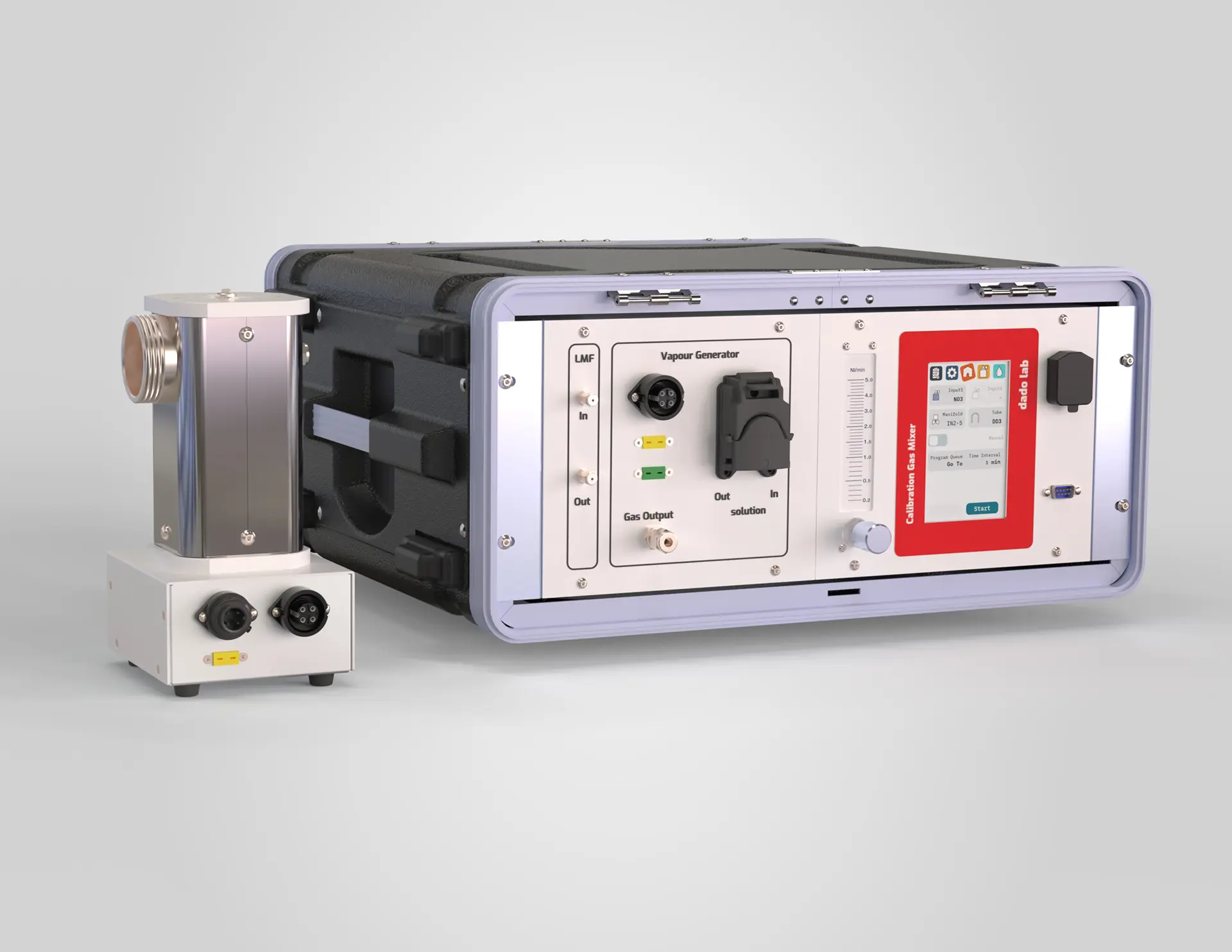

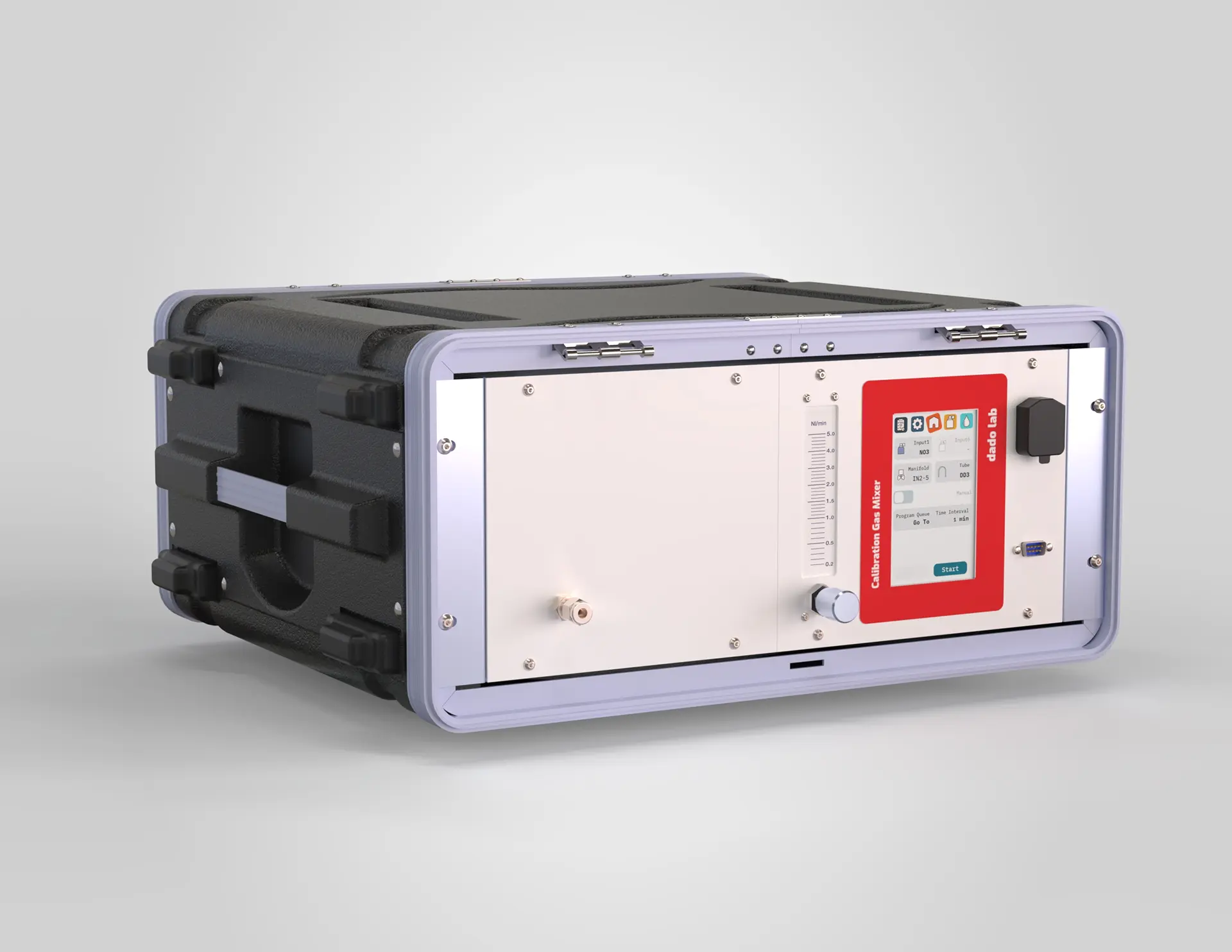

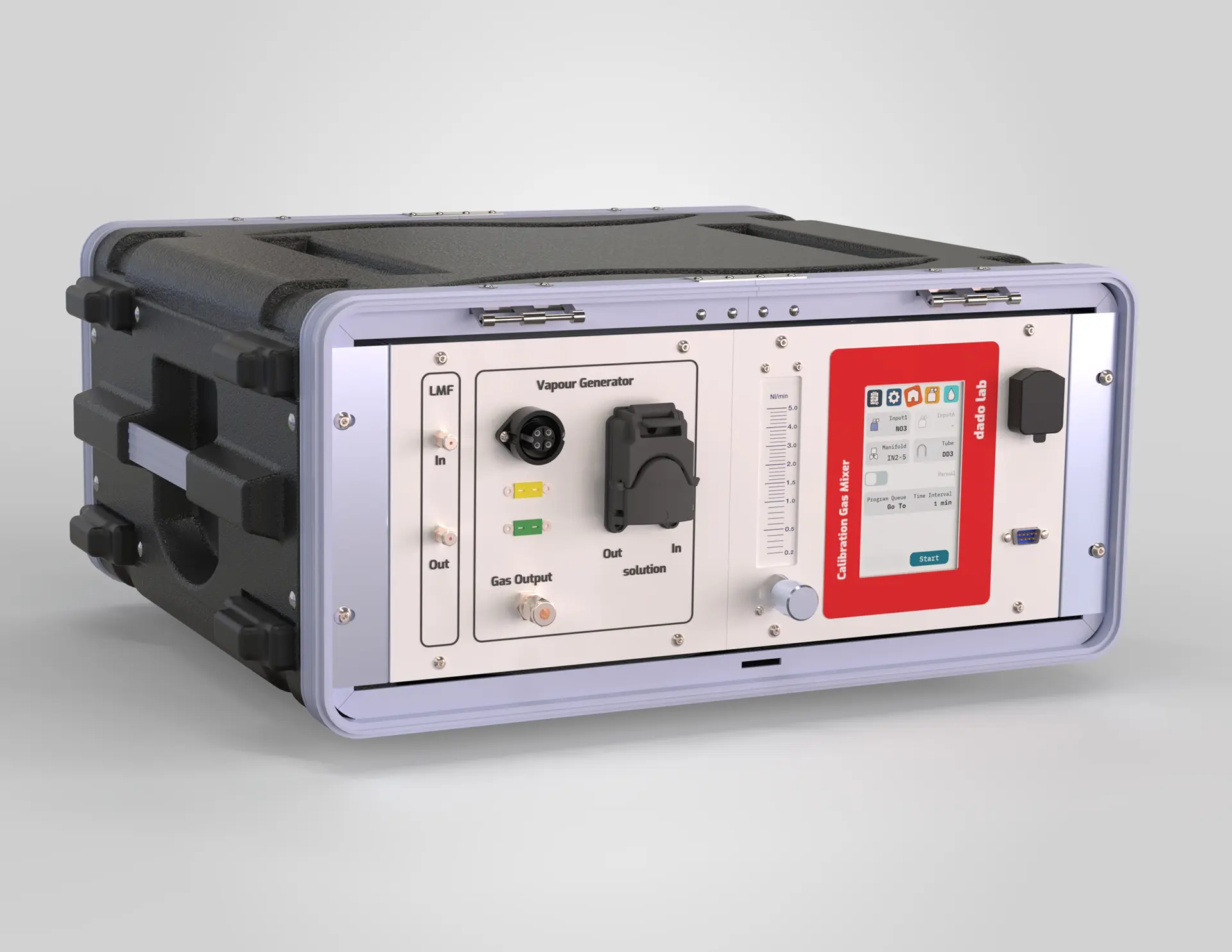

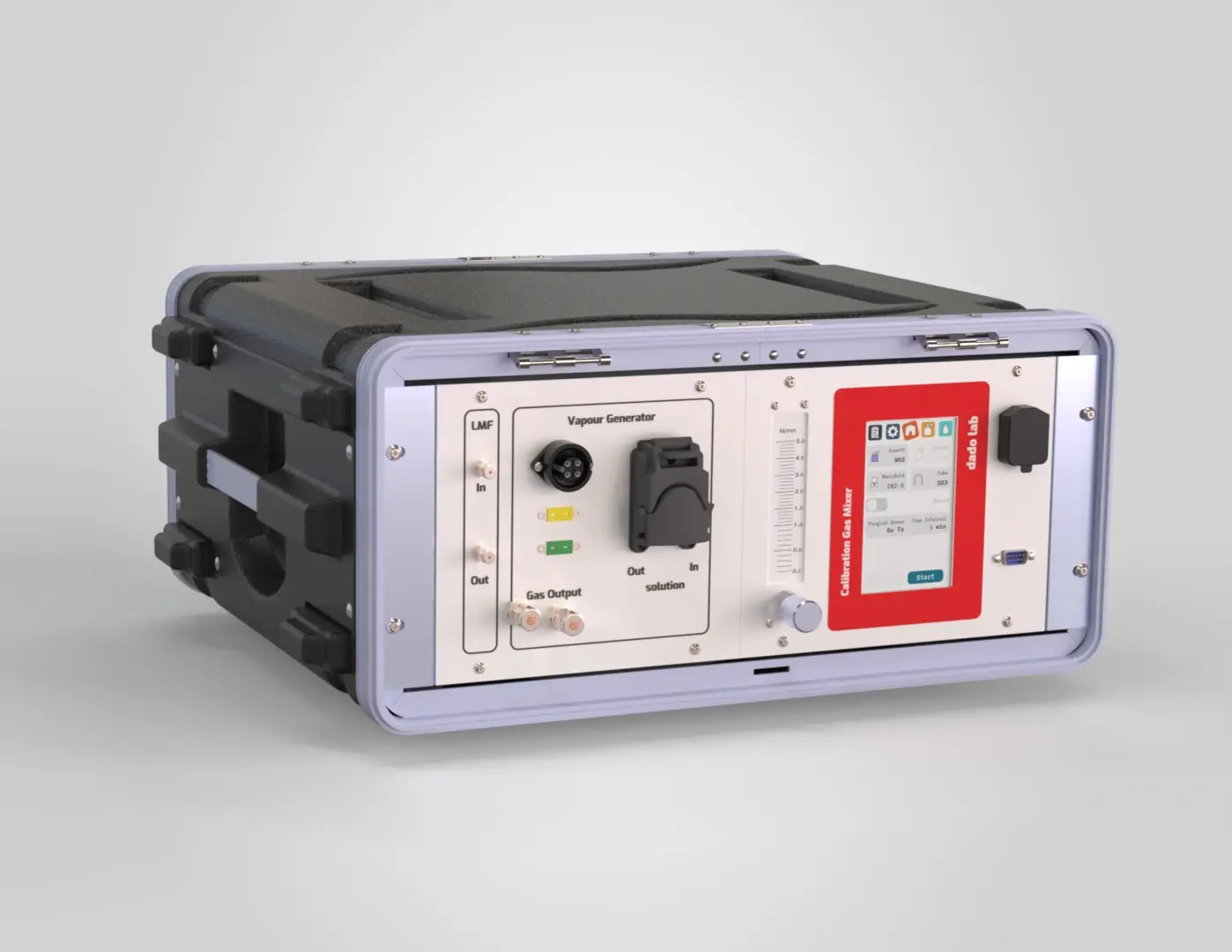

The Calibration Gas Mixer GM1 is the modular, scalable and Game-Changing Solution for Gas Dilution and Humidity Control.
Engineered for calibration and linearity verification of automatic gas analyzers, the Calibration Gas Mixer delivers accurate mixing and dilution of diverse gas matrices and chemical compounds. It supports both gaseous standards from cylinders and aqueous solutions.
While many systems offer basic gas dilution or humidity control, GM1 delivers a fully integrated, modular platform that adapts to your workflow, whether you’re in the lab or on-site.
Technical characteristics
| Display | LCD graphic 5″ with resistive touchscreen |
| Memorization | USB stick |
| Interface language | it, en – 11 languages available |
| Power supply | 230Vac ±10% 50/60Hz |
| Dimensions | 19″ 4U Anodized Aluminum Rack |
| Transport case | IP54 with removable covers |
| MFC1 gas carrier flowrate F.S. | 5 – 10 Nl/min (further flowrates on request) |
| Pneumatical Connection | 6 mm double ferrule fitting, Swagelok type |
| Accuracy | 1% F.S. or 0,5% reading ± 0,1% F.S. |
| MFC2/MFC3 flowrate F.S. | 2 – 5 – 10 Nl/min (further flowrates on request) |

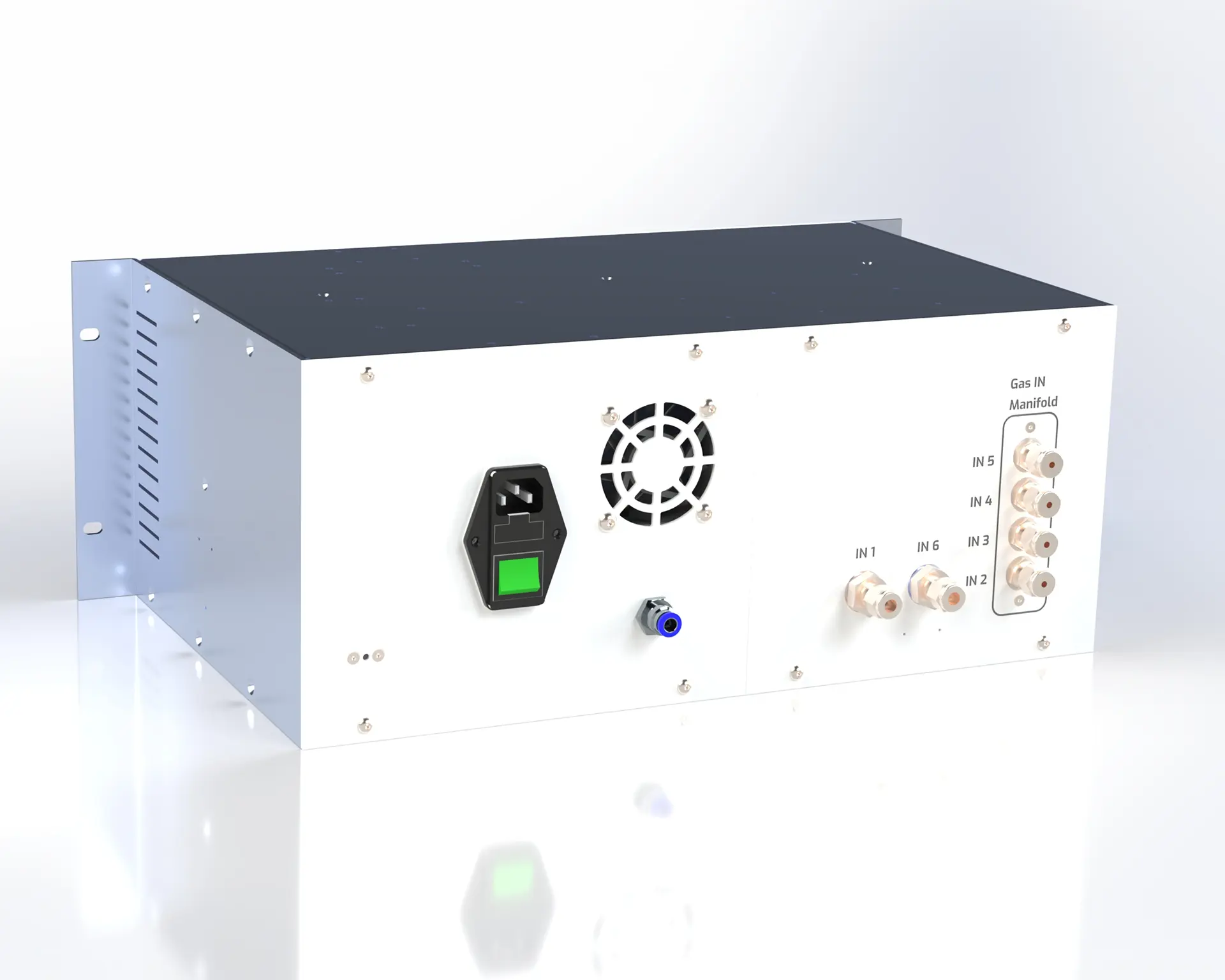

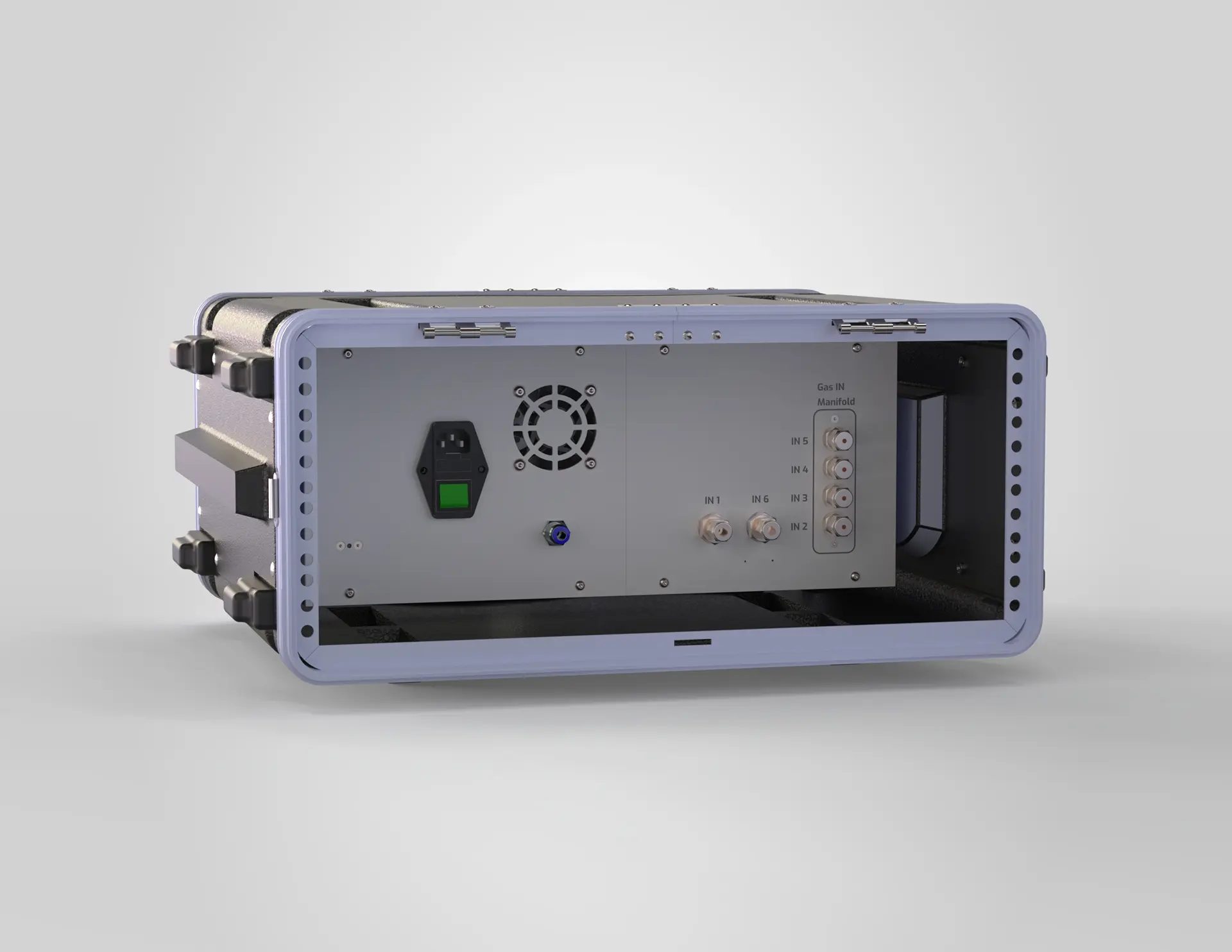

| Manifold | 4 input at 6 Bar max pressure – AISI 316 |
| Pneumatical Connections | mm double ferrule fitting, Swagelok typeRaccordi Swagelok a doppia ghiera da 3 mm |
| Evaporator Material | AISI 316 |
| Evaporator Temperature | MAX 240°C (selectable by user) |
| Heating power | 600W @230Vac |
| Dosing pump | Digital speed control |
| Tube inner diameter | 0.8 – 1.2 – 1.6 – 3.2 mm |
| Flowrate | 0.02 ml/min – 10 ml/min (with inner diam- 1.2 e 1.6) |
| Uncertainty/repeatability | Lower than 1 % in vapour concentration |
