Single Filter Samplers

1PMx

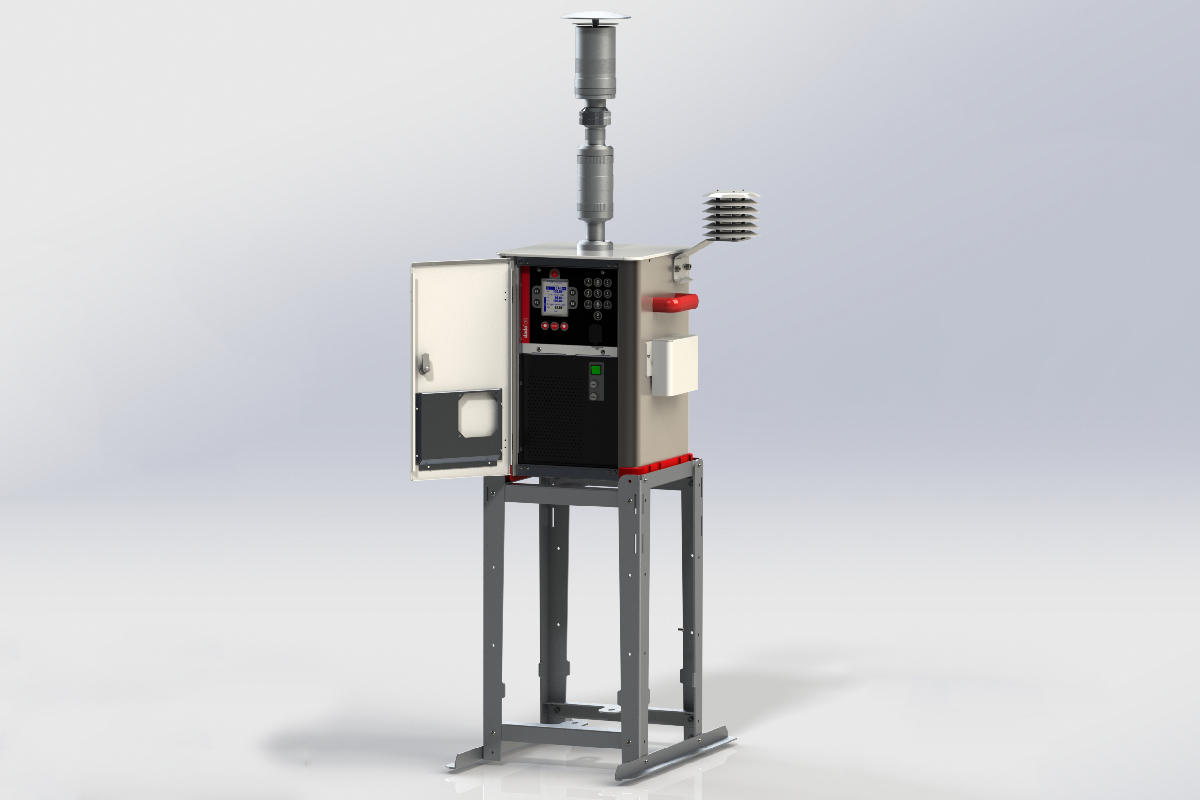

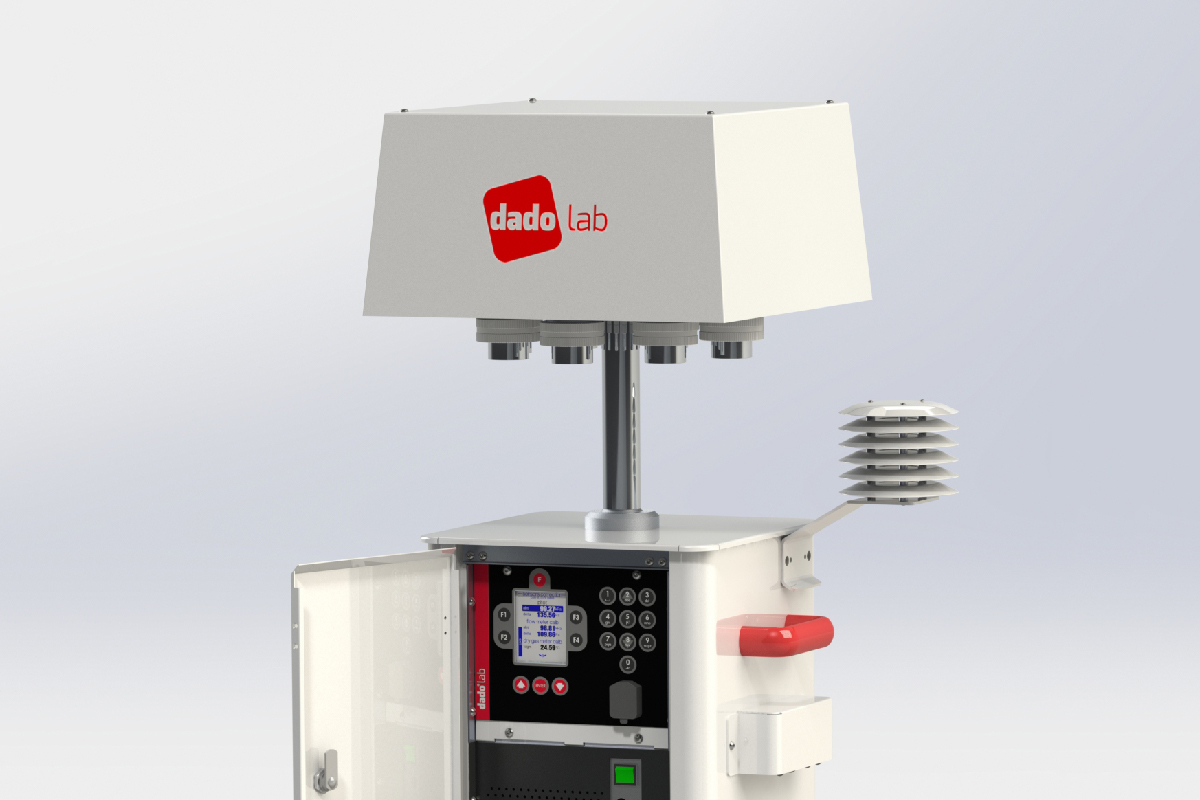

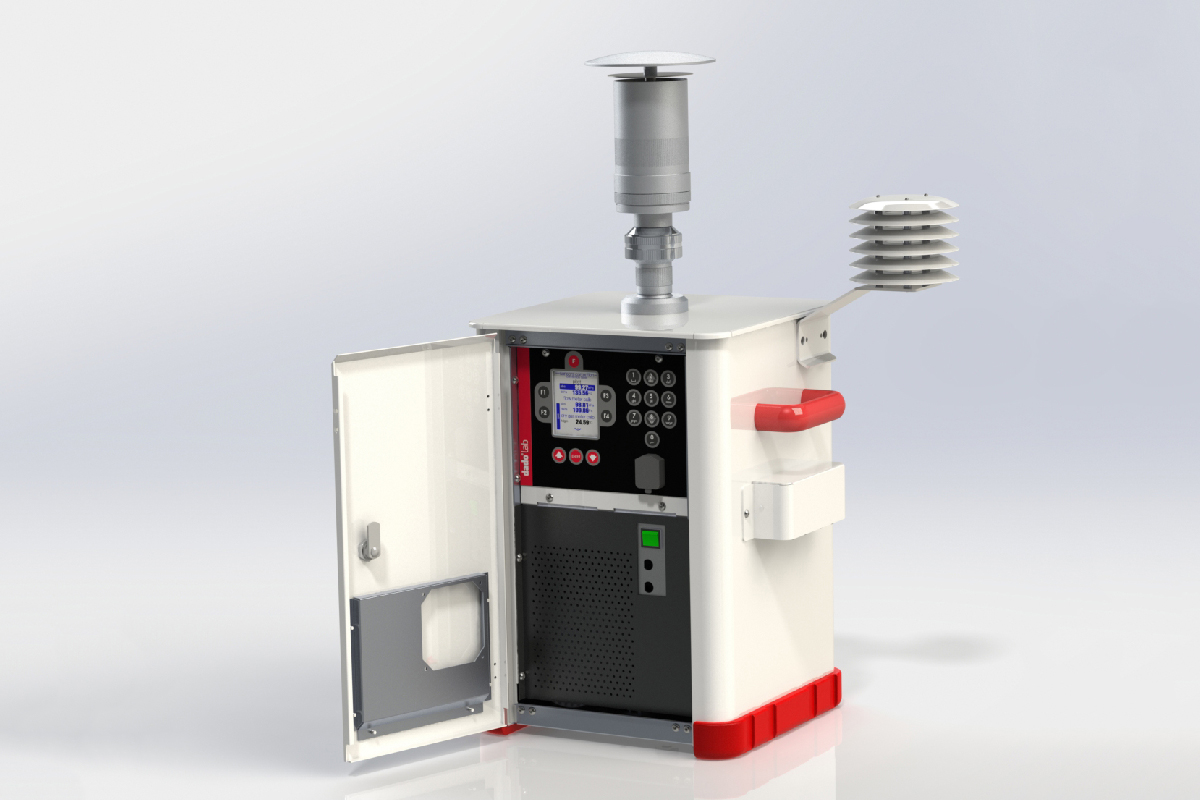

Single Filter Sampler 1PMx

The 1PMx samplers are the single filter version of our new sequential samplers named Giano and Gemini. The 1PMx are equipped with a compact version of the Giano/Gemini electronic core unit, developed appositely to be suitable for different applications and, also to be reliable and robust.

Realized in accordance to EN12341:2014, the 1PMx are equipped with a standard 4.5 m3/h pump for the classic PM10/PM2.5/PM1 sampling with EN-LVS or US EPA heads.

Download PDF

TECHNICAL CHARACTERISTICS

General
Operation conditions
Stock conditions
Display
Data port
Internal memory
Power supply
Materials
Keyboard
-20 ÷ 45°C
-10 ÷ 50°C 95% RH
21
3.5” Graphic LCD (QVGA)
USB 2.0
16GB
230 Vac ±10% 50/60Hz
Steel/Aluminum combined structure
Polycarbonate, tactile effect keys
Weight
1PMx
1PMxV8.5
Support stand
16kg
17kg
5kg
Power consumptions (230Vac 50Hz)
1PMx
1PMxV8.5
0.65 A approx 0.150 kW
0.65 A approx 0.150 kW
Specific
Sampling flowrate
Measuring Device
Range
Resolution
Accuracy
orifice meter
10 ÷ 60 l/min
0.01 l/min
± 1%
Ambient Pressure & Pressure Drop
Range
Hysteresis and Linearity
Resolution
Accuracy
10 ÷ 105 kPa (1050 mBar)
0.25 % F.S
0.01 kPa (0.1 mBar)
Better than 1% (± 0.25kPa)
Temperatures
Ambient
Range
Resolution
Uncertainty
PT100
-20 + 100°C
0.01°C
≤ 1°C
Weather
RH % Humidity
Range
Accuracy
0 ÷ 100 %
± 5 % (range 0% to 60% RH)
Wind Speed
Range
Resolution
Accuracy
0.5 ÷ 80 m/s
0.1 m/s
± 1 m/s
Wind Direction
Resolution
Accuracy
8 sectors on compass rose
± 4°
