PMx Sequential Samplers

Giano & Gemini

Campionatore a flusso costante QB1

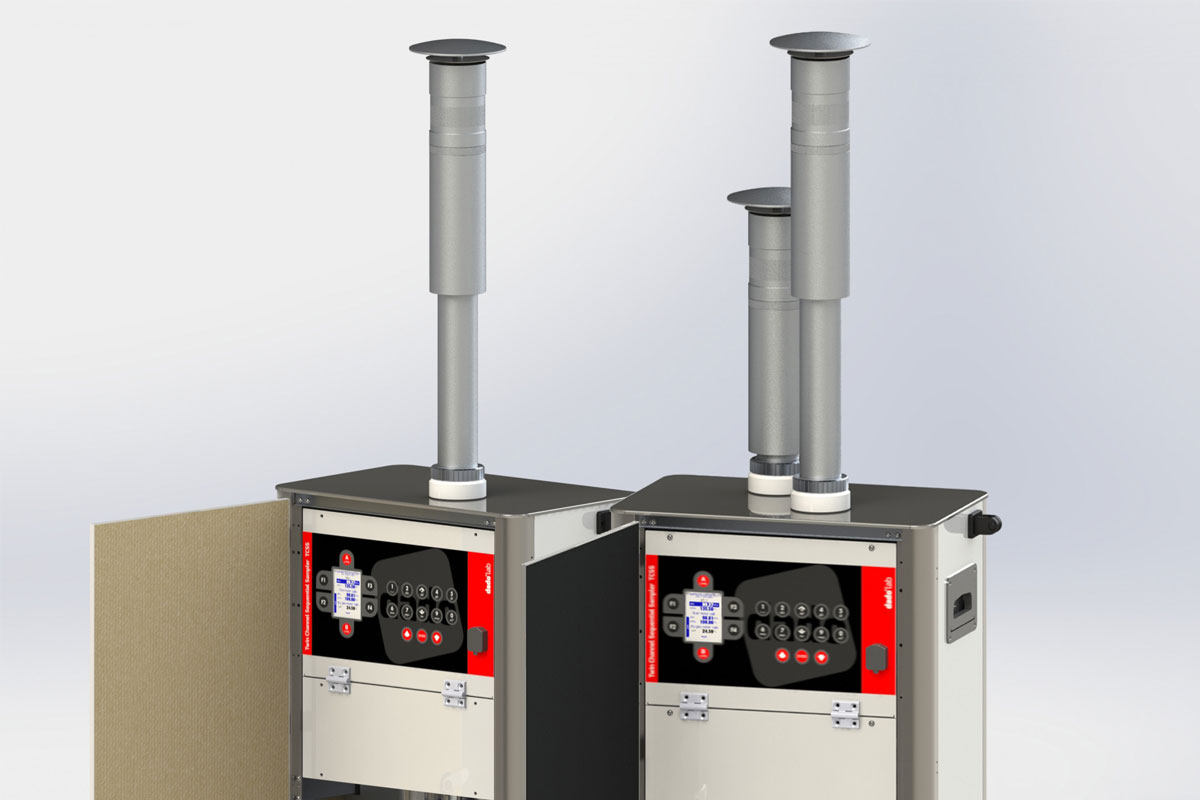

The PMx sequential samplers Mod. Giano and Gemini were designed and realized by Dado lab to be more practical, easier to transport and with user friendly interface compared to other available solutions.

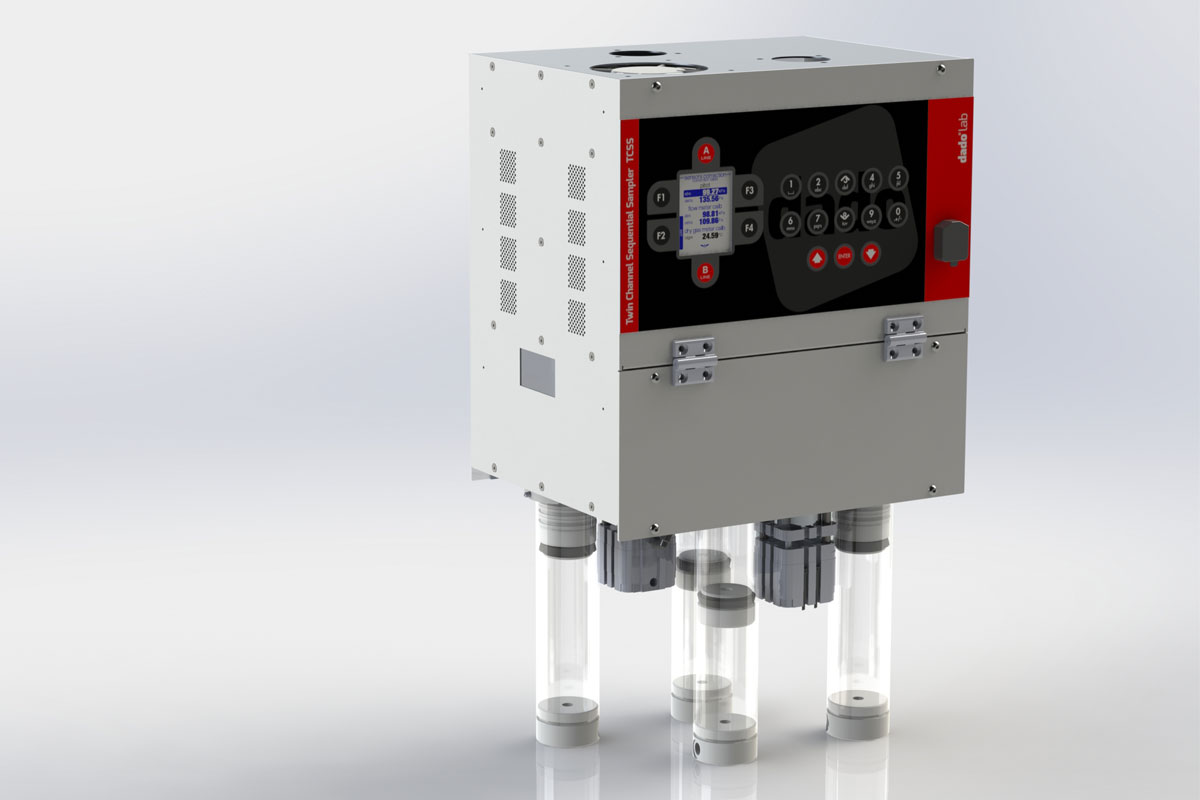

The common heart to both models is the multi-purpose core unit (MPC) which manages the sequential sampling on a single or double channels.

The MPC particular concept allows both outdoor cabinet solution or the 19” rack installation in shelters or mobile labs.

Particular attention was paid to the systems engineering with the target to reduce the number of the parts, which increases the reliability and reduces the size and weight infact, Giano and Gemini weight only 35 kgs without considering the pump/s and support stand.

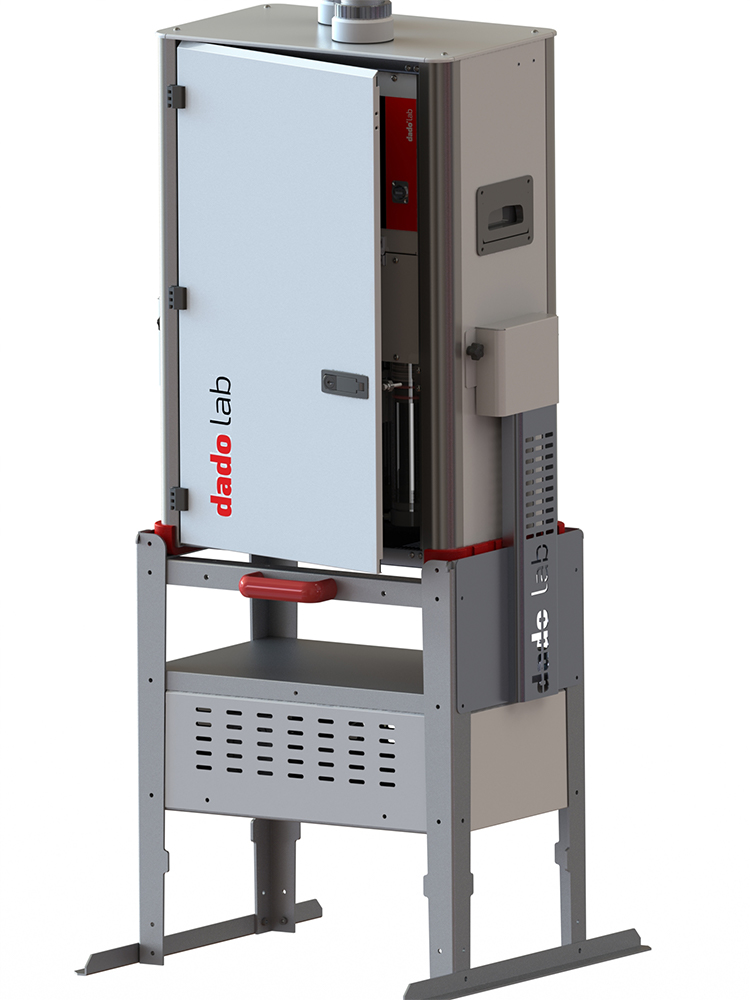

The MPC and the outdoor cabinet are designed to have forced internal air recirculation which helps to keep the ventilation tube, filter under sampling and exposed samples at ambient temperature.

The optional air conditioning unit, required for applications where ambient temperature values can be particularly high, keeps the filters area temperature below 25°C in case of ambient temperature exceeds 25°C.

The air conditioning unit is placed below the cabinet and offer the advantage to give high cooling performances. Despite other solutions, the air conditioniong system doesn’t require special protections or insulations for the filters tanks, which can still be easily accessed and changed on the field.

Download PDF

TECHNICAL CHARACTERISTICS

General
Operation conditions
Stock conditions
Max numbers of blank/exposed filters
Display
Data Port
Internal Memory
Power supply
Materials
Keyboard
-20 ÷ 45°C
-10 ÷ 50°C 95% UR
21
3.5” Graphic LCD (QVGA)
USB 2.0
16GB
230 Vac ±10% 50/60Hz
Steel/Aluminum combined structure
Polycarbonate, tactile effect keys
Weight
19” Rack Version Single Channel
19” Rack Twin Channel
Outdoor Version (without head) Giano
Support stand
Outdoor Version (without head) Gemini
Support stand (with two pumps)
14Kg
19Kg
35Kg
5Kg
34Kg
25Kg
Power consumptions (230Vac 50Hz)
Giano (w/ Glass fibers filter)
Gemini (Both channels with GF filters)
0.65 A approx 0.150 kW
1.30 A approx 0.300 kW
Specific
Sampling flowrate
Measuring Device
Range
Resolution
Accuracy
orifice meter
10 ÷ 60 l/min
0.01 l/min
± 1%
Amb. Pressure/Pressure Drop
Range
Hysteresis and Linearity
Resolution
Accuracy
10 ÷ 105 kPa (1050 mBar)
0.25 % F.S
0.01 kPa (0.1 mmH2O)
Better than 1% (± 2Pa)
Temperatures
Ambient
Range
Resolution
Uncertainty

Filter Sampling/Storage
Range
Resolution
Uncertainty
PT100
-20 + 100°C
0.01°C
≤ 1°C

TC Type J
-20 + 100°C
0.01°C
≤ 3°C
Weather
RH % Humidity
Range
Resolution
Accuracy
0 ÷ 100 %
1%
± 5 % (range 0% to 60% RH)
Wind Speed
Range
Resolution
Accuracy
0.5 ÷ 80 m/s
0.1 m/s
± 1 m/s
Wind Direction
Resolution
Accuracy
8 sectors on compass rose
± 4°
