GIANO BC1 – Black Carbon Analyzer
Black Carbon Analyzer

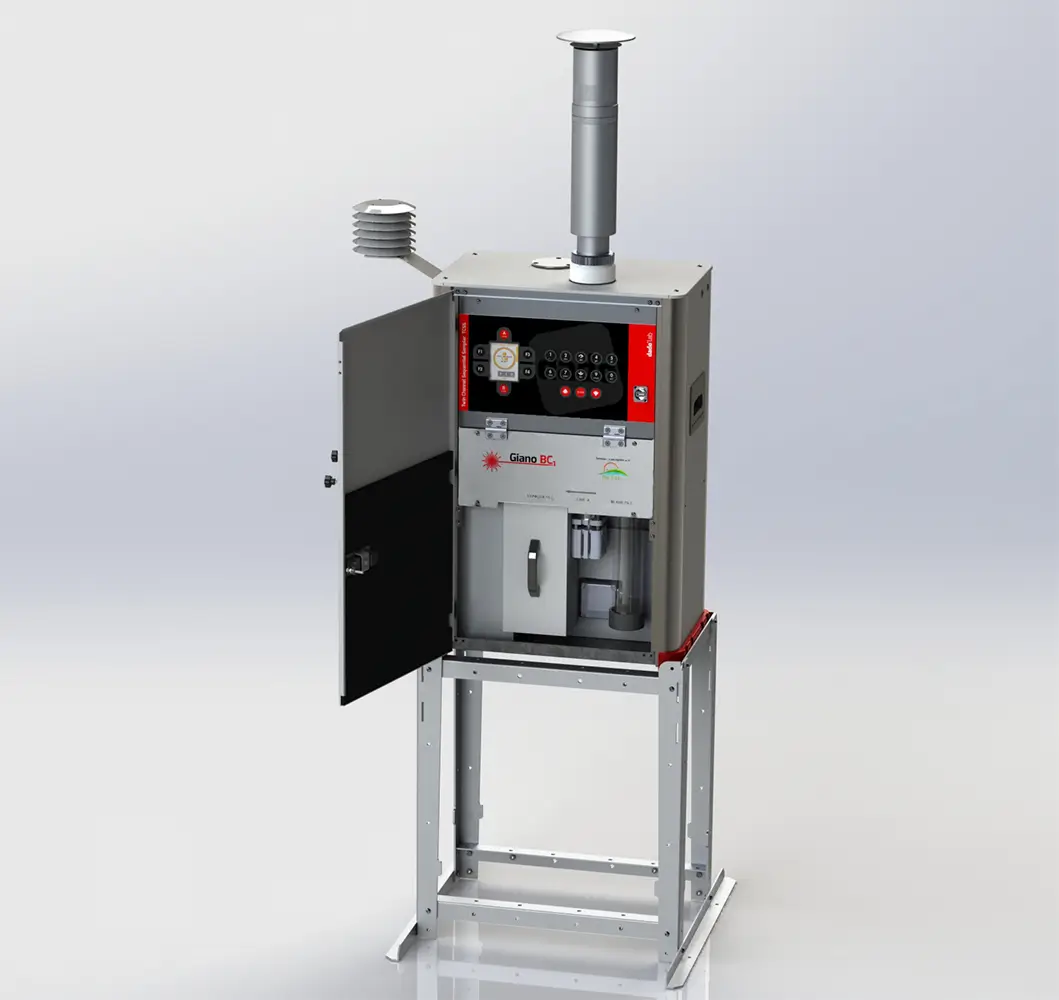

Giano BC1
Giano BC1 is a sequential sampler with Black Carbon analyzer in real time directly on the sampling filter.
Born from the collaboration between PM_Ten, a spin-off of the University of Genoa that followed the design, and Dado lab, which engineered and implemented the system in its sequential sampler, Giano BC1 is the first PMx sampling system in the world capable of determining the Black Carbon concentration in real time directly on the sampled filter.
Technical characteristics
| Operation conditions | -20 ÷ 45°C |
| Stock conditions | -10 ÷ 50°C 95% UR |
| Max numbers of blank/exposed filters | 21 |
| Display | LCD grafico a colori da 3.5” QVGA |
| Data Port | USB 2.0 |
| Internal Memory | 16GB |
| Power supply | 230 Vac ±10% 50/60Hz |
| Materials | Steel/Aluminum combined structure |
| Keyboard | Polycarbonate, tactile effect keys |
| Weight | |
|---|---|
| Giano BC1 | 43kg |
| Power consumptions (230Vac 50Hz) | |
| Giano (w/ Glass fibers filter) | 0.65 A approx 0.150 kW |
| Black Carbon | |
|---|---|
| Sensibility | 0.05 ug/m3 |
| Minimum readable value | 0.05 ug/m3 |
| Saturation | 500 ug/m3 [1 ora di campionamento] |
| Range | 0.05 ÷ 22.0 ug/m3 [concentrazione media 24h] |
| Sampling flowrate | |
| Measuring Device | orifice meter |
| Range | 10 ÷ 60 l/min |
| Resolution | 0.01 l/min |
| Range | 0.05 ÷ 22.0 ug/m3 [concentrazione media 24h] |
| Accuracy | ± 1% |
| Amb. Pressure/Pressure Drop | |
| Range | 10 ÷ 105 kPa (1050 mBar) |
| Hysteresis and Linearity | 0.25 % F.S |
| Resolution | 0.01 kPa (0.1 mmH2O) |
| Accuracy | Better than 1% (± 2Pa) |
| Temperatures | |
| Ambient | PT100 |
| Range | -20 + 100°C |
| Resolution | 0.01°C |
| Uncertainty | ≤ 1°C |
| Filter Sampling/Storage | TC Type J |
| Range | -20 + 100°C |
| Resolution | 0.01°C |
| Uncertainty | ≤ 1°C |
| RH % Humidity | |
|---|---|
| Range | 0 ÷ 100 % |
| Resolution | 1% |
| Accuracy | ± 5 % (range 0% to 60% RH) |
