Isokinetic Probe

CP5

Campionatore a flusso costante QB1

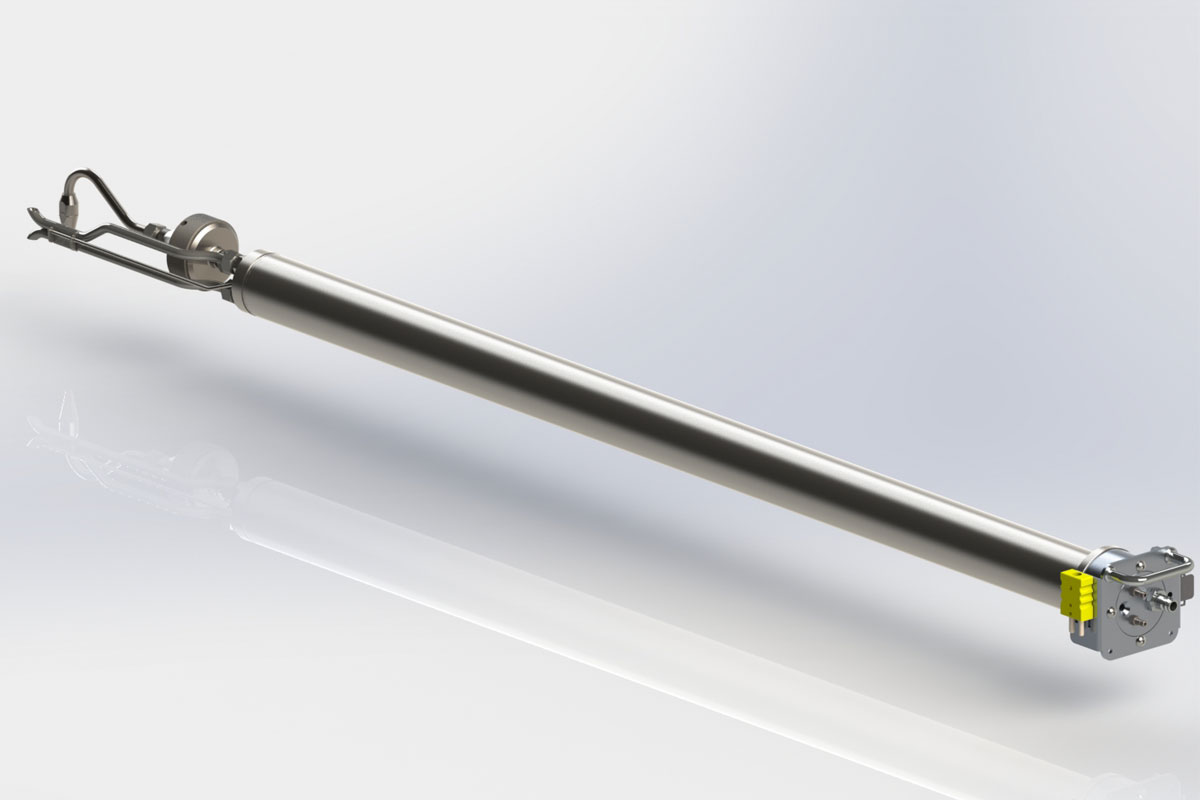

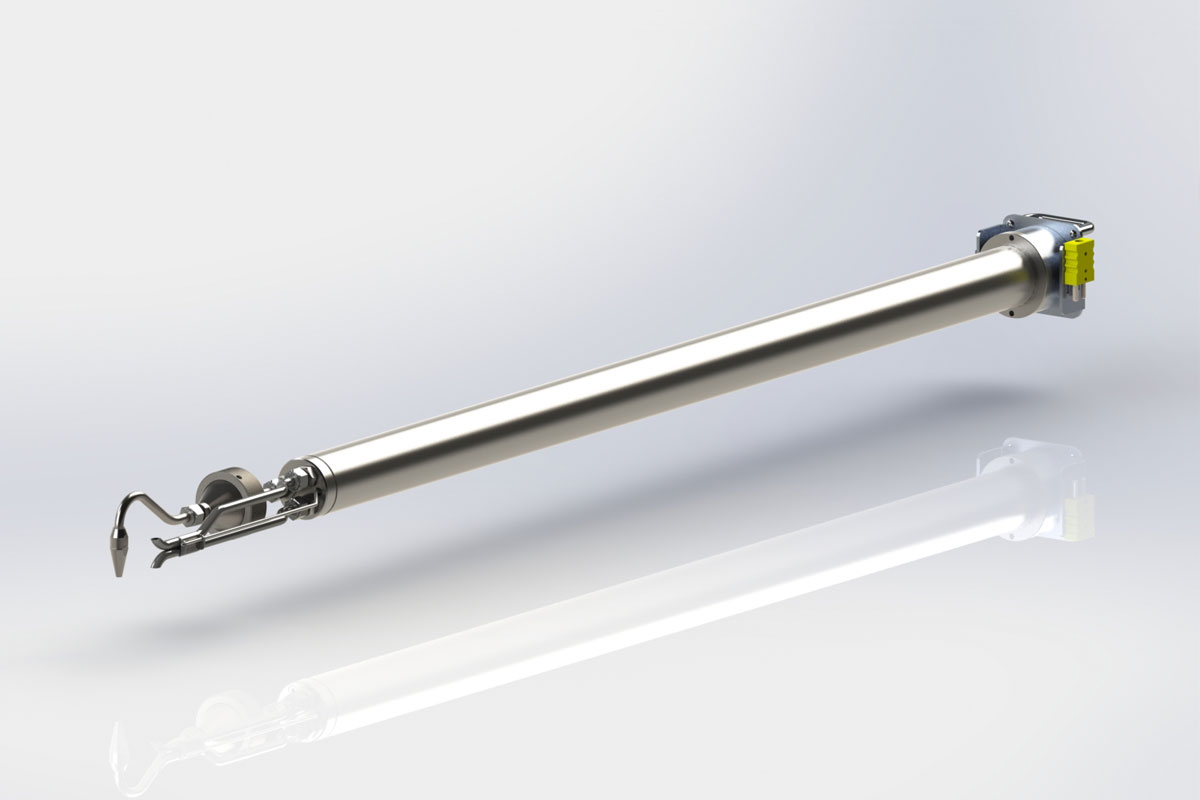

The CP5 is the revision of the classic not-heated sampling probe for the isokinetic sampling of particulate matter in stack emission application.

The CP5 design and construction follow the philosophy of the HP5: easy and practical to use on the stack.

The CP5 is fully realized in AISI316 and is supplied including the AISI316 inner tube, thermocouple and Pitot Type "S" terminal.

The absence of external parts in combination with the particular design of the slide device allows this probe to rotate on its axis for the swirl angle evaluation, as requested by the EN16911.

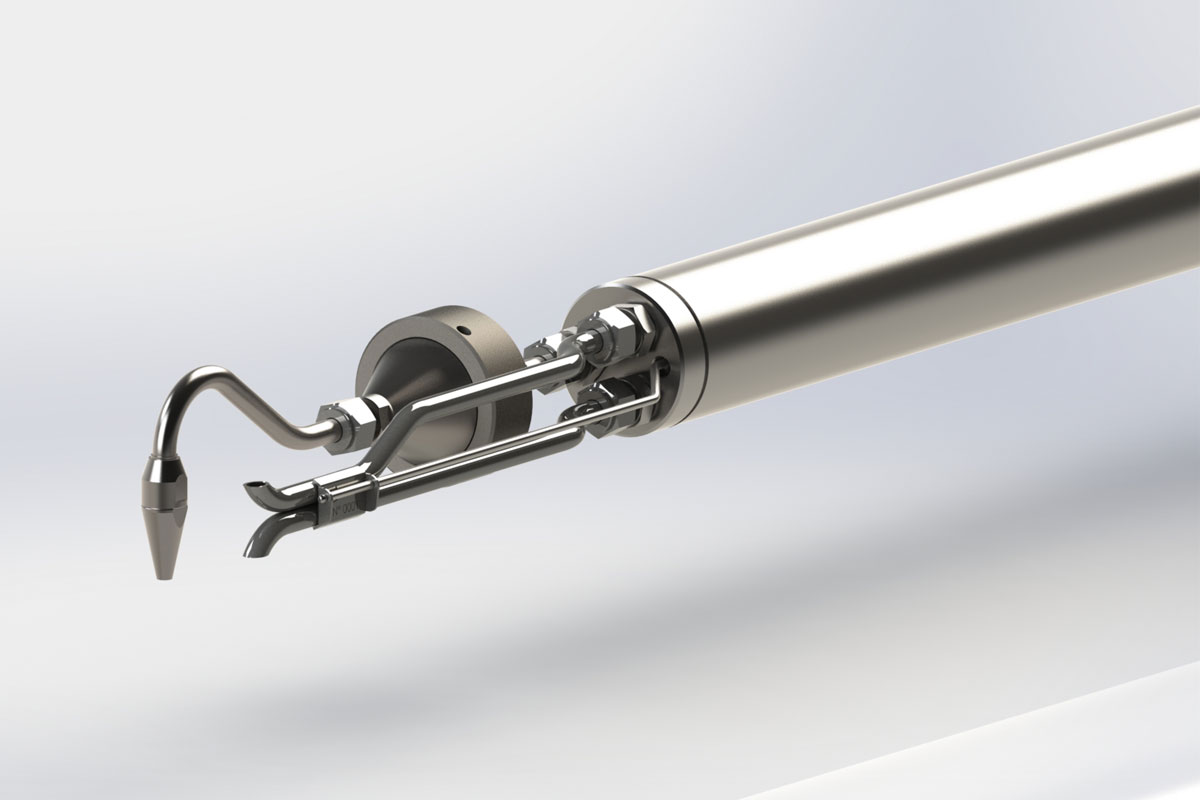

The removable Pitot terminal and the retractile thermocouple tip avoid to damage those delicate elements during transportation.

All the internal tubes are easily replaceable to easy the maintenance.

Download PDF
